Chamfering Machines
Consistent Chamfering. Superior Finish.
Complete chamfering machine range for production shops, fabrication units, CNC/VMC components and edge-finishing applications. Product details, photos, specifications and applications are now available directly on this category page.
Request QuotationMini Pneumatic Chamfering Machine
Premium / Mid / Economic Series
ETC 154530 series hand-held pneumatic chamfering machines are designed for CNC/VMC finishing, sheet metal parts, fabricated components, deburring after machining and light beveling work.
Select Quality Series

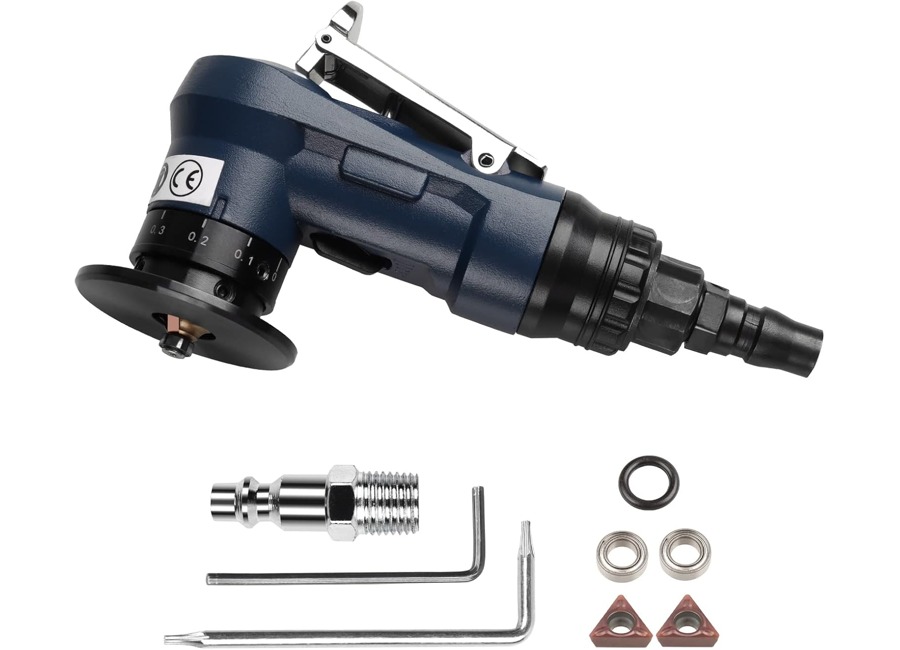

ETC 154530P — Premium Quality
Blue Color Series
Premium industrial finish model with better vibration control and high precision 45° chamfering performance.
- Chamfer Capacity: Up to 1.5 mm
- High precision 45° chamfering
- Suitable for heavy-duty production use
- Best for customers needing premium finish and durability

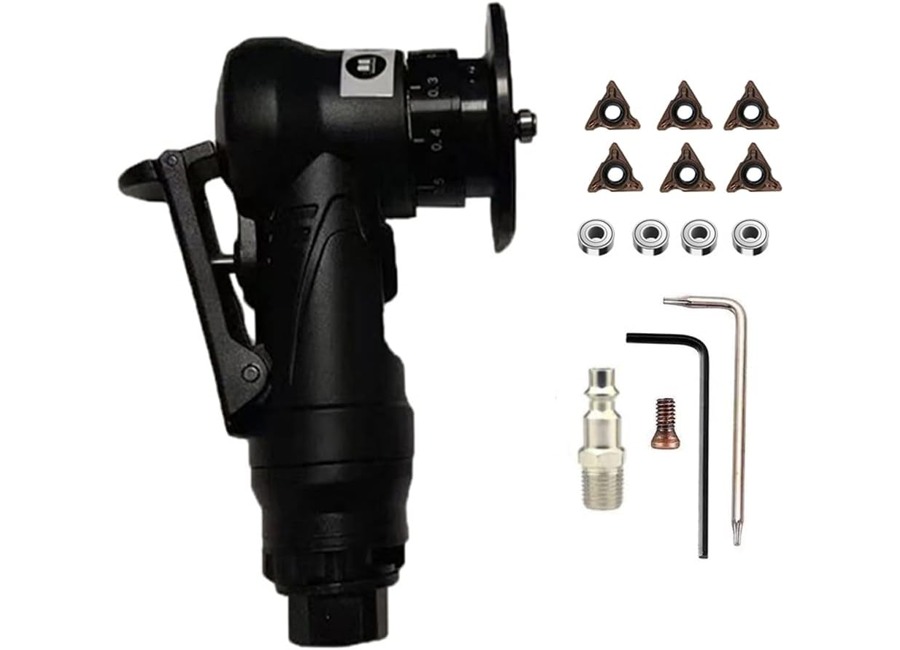

ETC 154530M — Mid Quality
Black Color Series
Balanced performance and cost model suitable for regular workshop and medium production applications.
- Chamfer Capacity: Up to 1.5 mm
- Reliable daily workshop use
- Easy maintenance
- Suitable for medium production

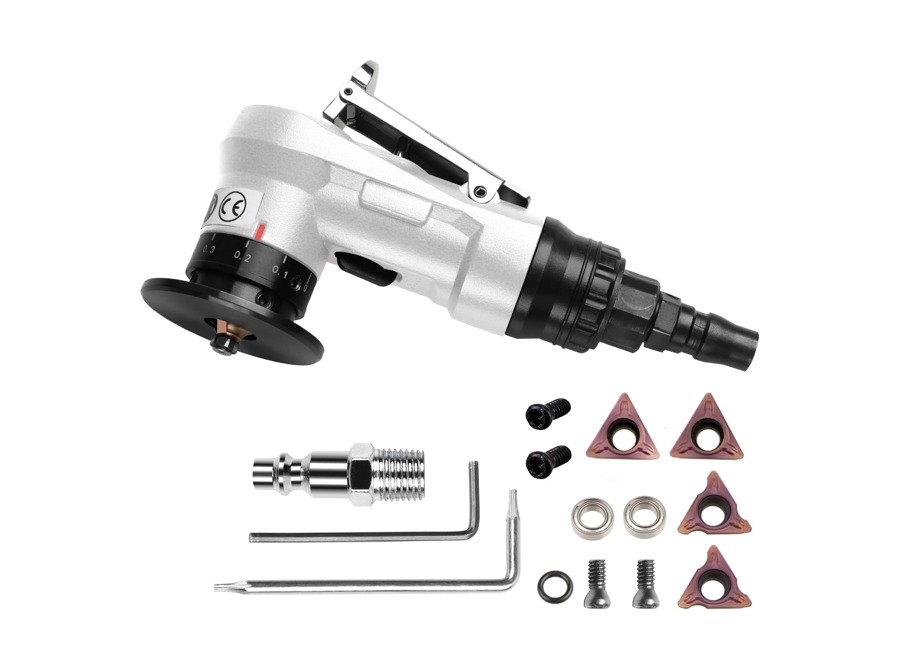

ETC 154530E — Economical Quality
Silver Color Series
Cost-effective economical model for light chamfering, deburring and entry-level industrial usage.
- Chamfer Capacity: Up to 1.5 mm
- Lightweight and easy to use
- Best for small workshops
- Entry-level industrial chamfering solution
Technical Specifications — ETC 154530 Series
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic Chamfering Machine |
| Series | ETC 154530 P / M / E |
| Chamfer Capacity | Up to 1.5 mm |
| Chamfer Angle | 45° |
| Machine Type | Hand-held portable |
| Power Source | Pneumatic / air powered |
| Cutter Type | Replaceable carbide cutter |
| Suitable Materials | CNC/VMC parts, sheet metal parts, fabricated components |
| Applications | Deburring, edge breaking, chamfering and light beveling |
Applications
CNC/VMC Components
Deburring after machining and light edge finishing.
Sheet Metal Parts
Sharp-edge removal and small chamfer preparation.
Fabrication Components
Light beveling and edge breaking before finishing.
Maintenance Workshops
Portable chamfering support for shop-floor repair and rework.
Original Pneumatic Chamfering Cutting Demo
Original Pneumatic Chamfering / Cutting Operation Video

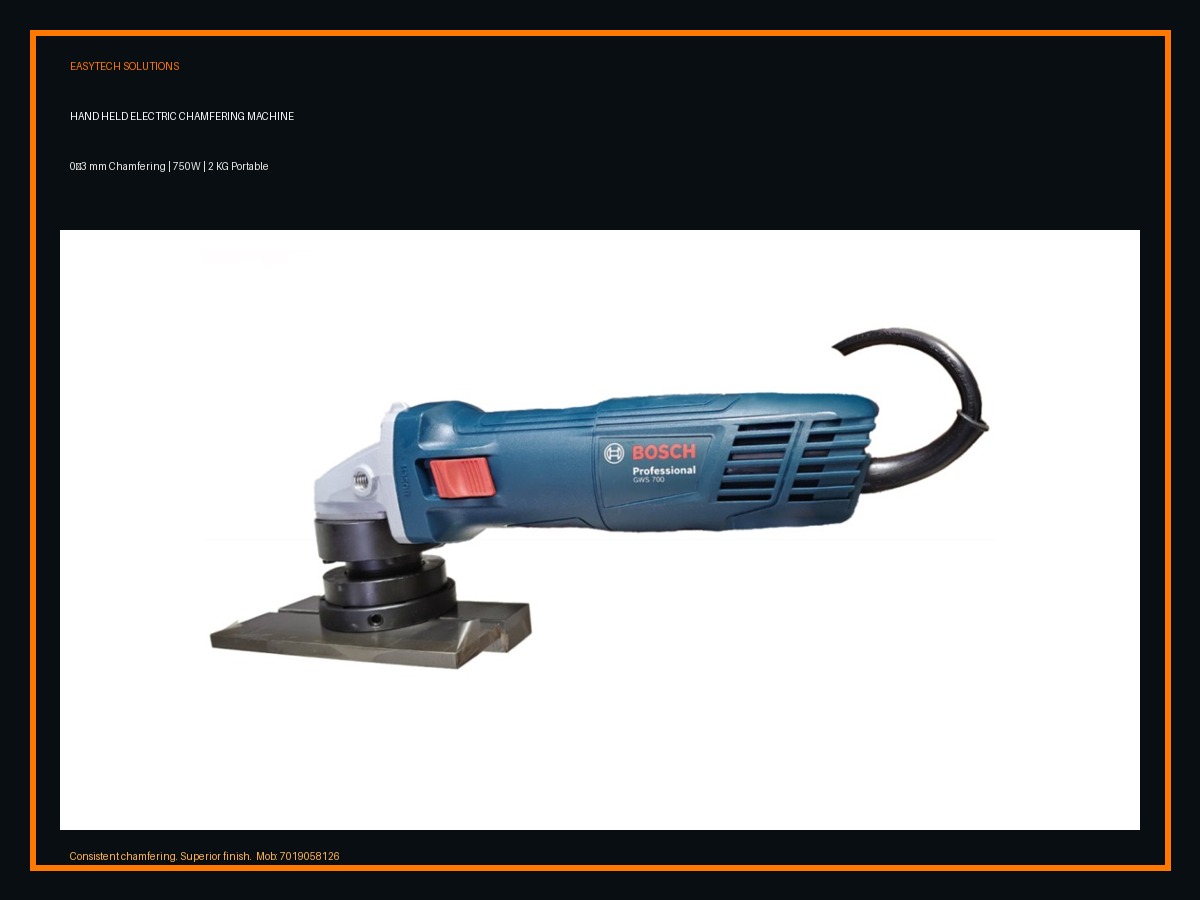

Hand Held Electric Chamfering Machine
Fast Portable Edge Beveling
A portable electric chamfering machine used to create beveled edges on metal, plastic and solid materials. It improves edge quality, removes burrs and prepares edges for welding, painting or assembly.
Watch Demo Videos
Technical Specifications
| Parameter | Specification |
|---|---|
| Automation Grade | Manual |
| Function | Plate Chamfering Machine |
| Usage / Application | Commercial / Industrial Edge Finishing |
| Chamfering Size | 0–3 mm |
| Model Name / Number | MMTOTO3MM |
| Speed | 500 |
| Voltage | 200V |
| Weight | 2 KG |
| Air Pressure | NA |
| Main Motor | Bosch |
| Power | 750W |
| Type | Electric Chamfering |
Benefits
Smooth & Precise Edges
Creates clean, consistent chamfers for a polished finish.
Faster Production
Speeds up edge finishing tasks compared to manual methods.
Improved Safety
Removes sharp burrs and dangerous edges.
Versatile Use
Works on metal, steel, aluminium, plastic and suitable solid materials.
Stronger Joints in Welding
Prepares bevels for stronger weld joints.
Applications
MS Plates
SS Plates
Aluminium
Fabrication
Weld Preparation
CNC Components
Demo Videos
Electric Chamfering Demo 1
Electric Chamfering Demo 2
Table Top Heavy Duty Chamfering Machine
Rigid Production Chamfering Solution

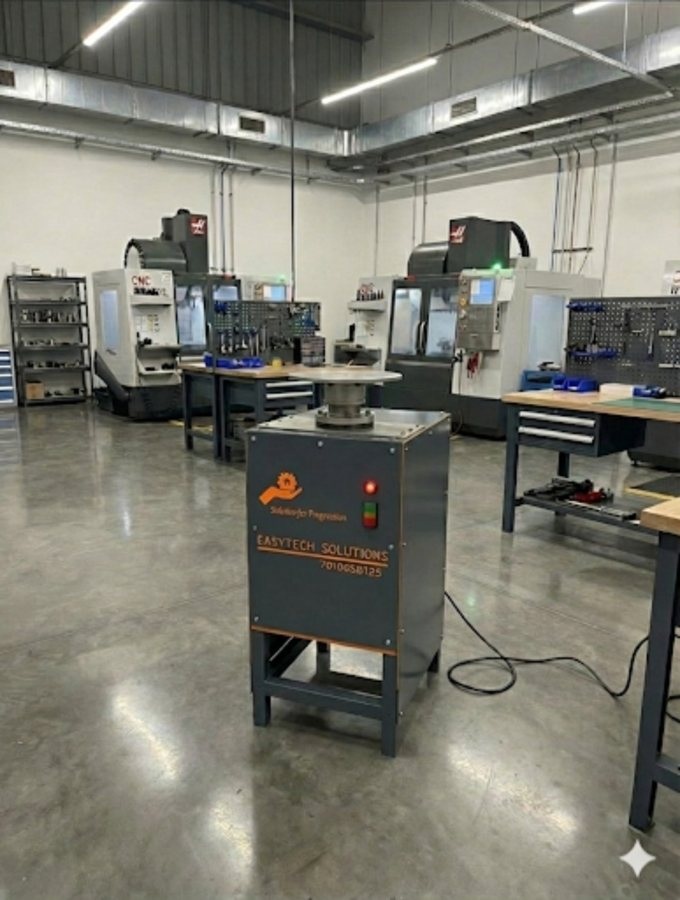

Easytech TTC300 is a high rigidity table-top chamfering machine for mass production, precision edge finishing and stable industrial chamfering.
Technical Specifications — TTC300
| Parameter | Specification |
|---|---|
| Model | Easytech TTC300 |
| Machine Type | Table Top Heavy Duty Chamfering Machine |
| Spindle Speed | 8000 RPM |
| Motor | 1 HP high speed motor |
| Chamfer Capacity | Up to 5 mm |
| Bearing | High speed angular contact bearing |
| Cutter | Replaceable cutter system |
| Applications | Mass production, precision edge finishing, CNC/VMC component chamfering |
Key Advantages
High Rigidity Construction
Rigid table-top design for accurate and repeatable chamfering.
High Speed Performance
8000 RPM spindle with 1 HP motor for fast edge finishing.
Mass Production Friendly
Designed for production finishing and repeatable chamfer quality.
Replaceable Cutter System
Easy cutter replacement for continuous industrial use.
Additional Chamfering Machine Range
Additional chamfering machines for portable, table-mounted and fabrication edge-finishing applications.

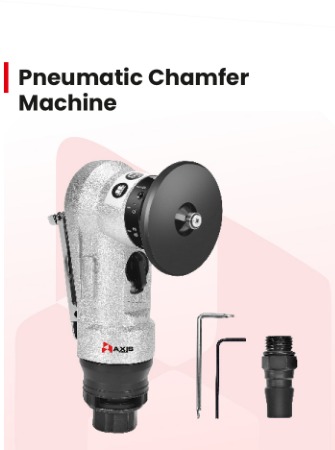

Pneumatic Chamfer Machine
Air-powered portable chamfering machine for burr removal and light edge finishing.
| Machine Type | Pneumatic chamfer machine |
| Power Source | Compressed air |
| Application | Manual chamfering, deburring, edge finishing |
| Use Area | Fabrication, tool room and shop-floor finishing |

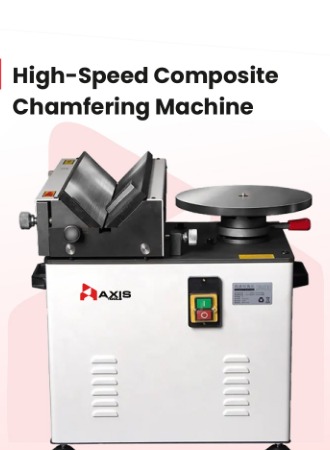

High-Speed Composite Chamfering Machine
Table-type chamfering machine for stable edge finishing and repeatable chamfer quality.
| Machine Type | High-speed composite chamfering machine |
| Operation | Table-mounted chamfering |
| Application | Component edge finishing and bevel preparation |
| Use Area | Production shops and fabrication units |

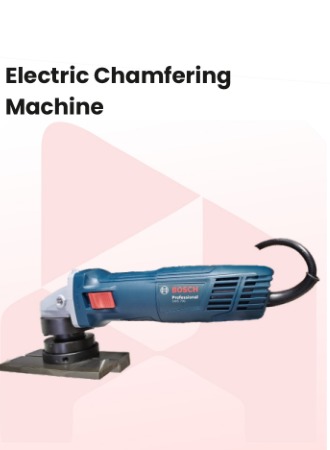

Electric Chamfering Machine
Portable electric chamfering machine for plate edge beveling and quick finishing work.
| Machine Type | Electric chamfering machine |
| Power Source | Electric motor |
| Application | Plate edge chamfering, burr removal, weld preparation |
| Use Area | Fabrication and machine shop finishing |
Industrial Applications
Fabrication & Welding
Prepare clean bevels for stronger welding joints.
CNC Components
Remove burrs and improve finished component appearance.
Plate & Edge Finishing
Improve safety by removing sharp edges.
Production Finishing
Reduce manual grinding and improve repeatability.
