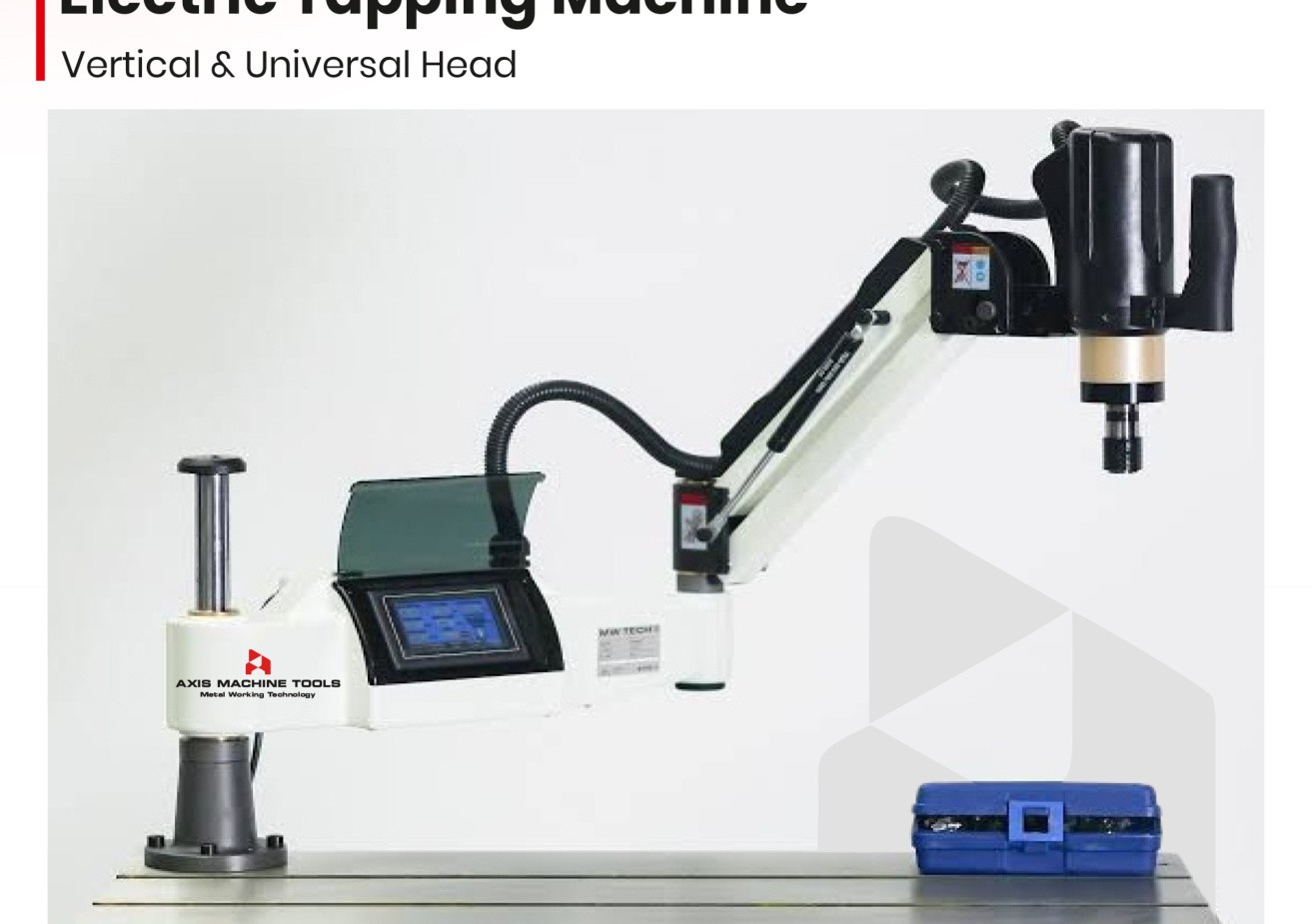

Electric tapping machines with vertical and universal head options for accurate thread making, production efficiency and consistent tapping quality.
Vertical and universal head tapping machine for fast, accurate and repeatable threading operations.
| Machine Type | Electric tapping machine |
| Head Type | Vertical & universal head |
| Tapping Capacity | M3 to M48 depending on model |
| Working Area | 1100 mm / 1200 mm depending on model |
| Application | Thread tapping for production and tool room use |
Select the suitable model based on tapping capacity, working area, motor power and spindle RPM requirement.
| SMT16 | M3–M16, 600W, 0–312 RPM |
| SMT24 | M6–M24, 2000W, 0–200 RPM |
| SMT36 | M6–M36, 2000W, 0–156 RPM |
| SMT48 | M12–M48, 4000W, 0–50 RPM |
| Basic Configuration | SMT16 | SMT24 | SMT36 | SMT48 |
|---|---|---|---|---|
| Tapping Capacity | M3–M16 | M6–M24 | M6–M36 | M12–M48 |
| Working Area | 1100 mm | 1100 mm | 1200 mm | 1200 mm |
| Motor Power | 600 W | 2000 W | 2000 W | 4000 W |
| Spindle RPM | 0–312 | 0–200 | 0–156 | 0–50 |
Creates threads quickly and accurately, helping reduce production time compared to manual tapping.
Produces threads with uniform quality for repeated production requirements.
Supports controlled thread depth and pitch for better assembly fit and function.
Reduces manual effort and helps minimize operator errors in tapping operations.
| Collets | Couple Dia. 31 mm, ISO Standard — 1 set, 9 pcs |
| Collet Torque Adjustment Spanner | 1 pc |
| Power Connecting Cable | 1 pc |
| Operation Instruction | 1 pc |
| Optional Accessory | Cast iron traverse table — L 800 × W 500 × H 700 mm |
